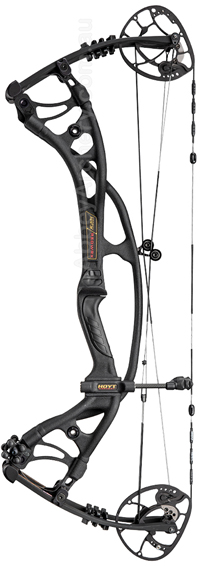

Hoyt REDWRX Carbon RX3 Turbo Target
Hoyt REDWRX Carbon RX-3 Turbo, engineered with archers from across the world in mind who prefer an extended geometry of 31", 350 fps speed, 4.0 lbs mass weight, the ultimate in mid length target bows
Hoyt REDWRX Carbon RX3 Turbo Target
Hoyt REDWRX Carbon RX3 Turbo Target Description
It is time to get serious with the REDWRX RX3 Turbo from Hoyt.
What is behind the name REDWRX?
The REDWRX line was first introduced for the 2018 bow range. The badge represents the pinnacle of bow design, engineering and technology without any gimmicks!
All competitors are not created equal and neither are their bows!
It is proven time and time again that when Hoyt do carbon, they do it right.
With 50 individual layers of carbon coming together for its hollow tube design, the REDWRX RX-3 sets the benchmark for lightweight, durable carbon riser design.
Since the introduction of the Carbon Matrix in 2010, Hoyt has continually evolved their designs to produce this bow hunting masterpiece.
Built with exceptional craftsmanship and the absolute best materials in the Hoyt QuadFlex limb system. An increase in width to .75", this limb configuration in its wider stance paired with Zero Tolerance Bi-Ax limb pockets provides the ultimate in torsional stability.
ZT Turbo Pro Cam, the all new engine with all new limbs and cams maximises energy transfer throughout the entire shot sequence. With an unprecedented 3% gain in cam efficiency, these are the smoothest, fastest carbon bows Hoyt has ever engineered. Efficient, smooth drawing, fast cams are at the heart of this premier hunting bow.
The Zero Torque (ZT) Turbo Pro Cam is the fastest, highest let off cam Hoyt has ever produced. With two let off options of either 85% or 80%, the ZT Turbo Pro Cam can be configured for your needs.
The Carbon RX3 Turbo continues on with Hoyt's split cable system that utilises dual buss cable tracks terminating at the bottom cam, eliminating bottom cam lean and the need for a flexible cable guard system.
The top cam has not been left out of the equation either! As always with a Cam and a Half system, there is a yoke attached to either side of the top limb which can be altered in length by twisting to adjust top cam lean. This can lead to one side of the yoke being significantly more twisted than the other and under a different load to the opposing side.
The ZT Turbo Pro Cam employs two differing sized tear drop shaped anchors at either side of the limb to allow an even twist ratio in each yoke leg, reducing any chance of unwanted stretch.
The RX3 Turbo stands apart from the other REDWRX bows with its longer 34" Axle to Axle and a draw length option out to 30" to suit most shooters.
Vibration Dampening Silencing Technology. Hoyt's noise crushing vibration damping system includes upgraded Shock Pods, StealthShot and Limb Shox along with the all new Hole Shot string silencers to help make this Hoyt's quietest carbon bow ever.
Fuse custom strings constructed from BCY X material are the most stable Hoyt has ever produced.
There is no need for a bow press when installing a drop away rest due to the cable system make up. This feature provides convenience for the pro shop and home bow mechanic alike.
At full draw the REDWRX RX3 Turbo combination of Quadflex limbs and the ZT Turbo Pro Cam create a longer axle to axle which allows for better head position and a more stable shooting platform.
The all new Custom-Tune Grip allows for lateral grip adjustments for a precision-tune based on your specific hand shape and grip pressure points for ultimate accuracy. Each REDWRX bow utilises a lower grip location in the riser. Its purpose is to keep the centre of mass at the grip for perfect balance, a new feature known as Optimised Weight Distribution. Previously, bows with this hand grip geometry have been top heavy in feel and unbalanced. This was simply not acceptable for the meticulous team of engineers at Hoyt. When designing the RX-3 Hoyt combatted this issue by incorporating an asymmetrical wider stance limb pocket design spanning 3.1" at the bottom of the riser compared to 2.6" at the top. Hoyt has located the all new Custom-Tune grip in this riser position for optimised tuning and arrow delivery giving you one of Hoyt's most tunable bows to date.
Hand shock, residual vibration and excess noise is not a factor with this bow. The Hoyt Shock Pod vibration damping system in conjunction with Limb Shox hushes all, for the whisper quiet shot archers demand.
Bow mass weight can be a critical factor when climbing hills and trekking on long walks. Tipping the scales at just 3.9 pounds, the REDWRX Carbon RX3 Turbo is the ultimate target bow to have by your side.
As part of your bow purchase, you receive a Hoyt promo kit comprising
- An 18 page Owner's Manual
- Hoyt Decal
- Warranty Registration Card
- Hoyt Wrist Band
- REDWRX Black Mesh Cap - black front panel and peak, black bill with black stitching, all black mesh sides and back with red REDWRX logo and name on front panel, white Hoyt and red Archery patch on side and red Hoyt tab at back
- REDWRX Bow Case with separate arrow pocket to stow arrows or stabiliser - black with red stripes across the top with red REDWRX logo and name on front, a great compliment for your Hoyt REDWRX bow
Specs at a glance
- ATA Speed 350fps
- Weight range 30-40lbs, 40-50lbs, 50-60lbs, 55-65lbs, 60-70lbs. Please specify weight required.
- Draw length range Cam 2: 26"-28", Cam 3: 28"-30" in half inch increments. Please specify draw length
- Brace height 6"
- Axle to Axle 31"
- Mass weight 4.0lbs
- Let-Off 85% and 80%. Please specify Let-Off
- Zero Torque Turbo Pro Cam
- Hollow Tube Carbon Riser
- .75" wide Quad Flex Limb technology
- Parallel split limb technology
- Multi-layer limb lamination
- Zero Torque Cable Guard system
- Bi-Ax Limb Pocket system
- In-line roller cable guard
- Perfect balance stabilisation system
- Silent shelf technology
- Custom-Tune Grip
- FUSE Strings and Cables
- Available in Right Hand and Left Hand. Please specify RH or LH
- Available in 6 target limb colours of Blue, Green, Orange, Red, White and Purple with matching colour FUSE custom strings and cables to choose from. Please specify colour required. All bows come with BlackOut Risers
Not all archers are created equal. That's a fact. Not all bows are created equal. This too, is a fact.
50 Plus Custom Carbon Layers. Carbon, purpose-built for pinpoint accuracy and deadly stealth. Each individual hand-laid carbon component is precision-tuned for structural optimisation. Each riser is purpose-built for enhanced stiffness and reduced vibration.
Carbon has 11 times the stiffness to weight ratio of aluminium. Hoyt thermoset carbon endures more force without bending or twisting, eliminating riser vibration and increasing consistency and repeatability.
No Hoyt Carbon riser design is approved until surviving their brutal 1,500 dry fire test. Each dry fire delivers more than 104 foot pounds of kinetic energy, sourced from 80 lbs of draw weight at a 30 inch draw.
Compared to aluminium, carbon can absorb seven times more energy without permanent deformation. As an example, what happens when you park a 6,115 pound truck on a Hoyt carbon riser and an aluminium riser? The carbon riser has the ability to absorb the weight and energy and return to its original state without any permanent deformation, while the aluminium riser yields and remains bent.
Hoyt's carbon tubes are hollow, weighing 53% less than solid versions. In spite of being drastically lighter, Their hollow carbon tubes maintain 97% the stiffness and strength of a completely solid version.
Carbon provides 208 times more effective thermal insulation than aluminium. What does this mean to you? It means your carbon riser won't suck the life out of you on cold weather hunts, making you a more alert and effective hunter.
(All dry-fire testing is done by trained technicians with proper equipment. Dry firing (drawing and releasing your bow string without an arrow) is extremely dangerous and should never ever be attempted. Hoyt's 1,500 dry fire test and standard is for Hoyt risers. The truck torture test was done under controlled conditions and should not be attempted under any circumstances. If your bow is run over by a vehicle, do not shoot it. Take it directly to your dealer for full inspection. Running over your bow may void Hoyt's warranty policy.)
New ZT Pro Cam Technology maximises effective string angle, creating a longer axle-to-axle at full draw, increasing accuracy and stability; encourages a more comfortable and accurate head position; gives the manoeuvrability benefits of a short bow in your ground blind or tree stand, while providing the advantages of a longer axle-to-axle bow; ZT Pro Cam design creates less limb movement, resulting in a quiet, vibration-free shot.
ZT Pro Cam optimises peep position, creating a more direct string angle and brings the peep closer to your eye, increasing peep-to-sight distance and maximising accuracy.
ZT Pro Cam allows a more comfortable and consistent anchor and alignment; eliminates 'head tilt' at anchor, by bringing the string to your nose, promoting proper head position and form. Reduced facial contact and string pressure results in more accurate and consistent arrow flight.
Effective string position at full draw. Head position is vital to the consistency and accuracy of your shot. The new Quad Flex Limb and ZT Pro Cam systems work together to deliver a dramatically broader string angle, an increased full-draw axle-to-axle measurement and a more optimal peep position. These innovations allow a more relaxed, strain-free posture at full draw and reduce facial contact, string pressure and eye fatigue at anchor.
The result is a 2019 30.5 inch bow that feels and performs like last year's 34 inch equivalent. Yes, you read that right, your compact tree stand or ground blind bow will feel and perform like a stable and forgiving 34 inch bow and your 35 inch bow will perform like a 38 inch target dream bow. If the numbers don't convince you, your experience at full-draw and your tightened arrow groups will.
|Bow Cams:||Zero Torque Pro Cam|
|Limbs:||.75" wide Quad Flex|
|Speed:||350 feet per sec.|
|Axle to Axle:||31 inches|
|Brace Height:||6 inches|
