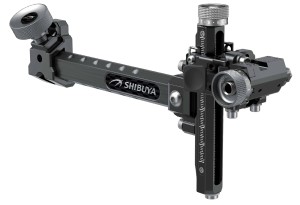

Shibuya Ultima CPX III Carbon sight 9in extension

What springs to mind when you think of Shibuya. Rugged performance? Utmost reliability? Smart design? All of these, because Shibuya exudes quality.

Shibuya has been the number one choice for recurve medallists for decades with tournament proven accuracy and reliability. In 2005 Shibuya aimed to recreate this achievement within the compound discipline with the launch of their Ultima sights. The results were immediate and led to further developments.

Today many top archers around the world shoot a Ultima CPX III compound sight. Why don't you? Shibuya is for podium winning performances.

• Rock solid precision for podium winning performance.
• Micro Adjustment Travel - 0.05mm per click windage and elevation, approximately 1/24in per revolution
• Integrated 2nd & 3rd axis adjustment
• Extra large release lever for smooth, easy adjustment
• Laser etched sight scale compatible with popular configuration software
• Revolutionary ZPE system which eliminates backlash and play in the elevation adjustments. A re-adjustable aluminium wedge, secured with Nord-Lock washers, eliminates any gap between the threaded locking block and aperture block
• The flat shelf indicator pins are easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down
• Field adjustable, field replaceable components, so no need for factory repairs
• Includes soft carrying case and metric Allen wrenches

Features of the Shibuya Ultima CPX III Carbon sight include

• Tria-Lock System - Ultima CPX III's scope rod is threaded through the windage block, offering an unprecedented level of stability and ruggedness, a smooth accurate operation while preserving the outstanding light weight of the Ultima sight. This innovative Tria Lock system encloses the entire windage slider from three sides, keeping it perfectly aligned and without play to produce a rattle-free, zero tolerance environment. The Tria-Lock system keeps the scope rod approximately 0.5" closer to the elevation bar than conventional target sights, the key to stability. This significantly reduces movement on the windage unit, a significant factor in development of play and faults.
• Upgraded X-Lock System - Re-adjustable, zero tolerance fit between the windage unit and the sight frame. Super slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts are field adjustable and replaceable.
• Cutting Edge Technology with Grade 5 titanium alloy lock down bolts for 2nd & 3rd axis dependable adjustments, as well as rugged wedge-locking Nord Lock washers for absolute vibration resistance to lock them firmly in place. No more loose screws! All carbon sight parts are manufactured in Japan under the strictest quality control.

Shibuya Ultima CPX III Carbon with 9" extension bar compound target sight specs at a glance

• 22.86cm or 9" carbon extension bar. There is also a 6" carbon extension bar model which is not a stocked item but can be special ordered. Please enquire
• 13.21 cm or 5.20" vertical frame for longer distances. There is also a 9.27 cm or 3.65" (205 grams or 7.23 oz) vertical frame for shorter distances which is not a stocked item but can be special ordered. Please enquire
• Weighs just 225 grams or 7.93 oz
• 10-32" thread for sight pins and scopes. Scope is not included but is sold separately
• Available in Right Hand only. Also available in Left Hand which is not a stocked item but can be special ordered. Please enquire
• Available in Black only. Also available in Blue, Red and Gunmetal Grey which are not stocked items but can be special ordered. Please enquire
• 29mm Scope with Nikon Lens in 0.50 & 0.75 diopter features weather proof lens, 30% lighter magnesium housing, non-glare level, aluminium lens retainer ring, scope cover, scope reticles is sold separately
• Fold-out manual for installation and operation included

ULTIMA CPXIII’s elevation bar feature recessed metal sight scale plates on both sides. Each CPXIII includes a blank plate and reference scale. 8 double-sided sight scale plates, for a total of 16 scale options, are available sold separately. Printed sight tapes can be used on the blank plate supplied.
