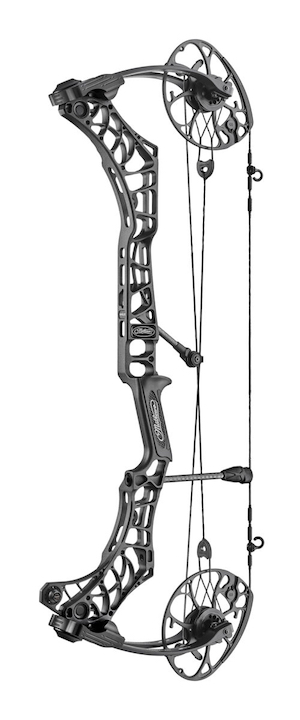

Mathews V3X 29

Brand: Mathews

Compact axle to axle combined with the super smooth and fast cross centric cam make the V3X 29 a fantastic bow. Teamed up with Switchweight technology, changing draw length or peak weight is a dream

Mathews V3X 29 Description

With an even longer riser to axle-to-axle ratio than the previous V3 27, the V3X has a two inch increase out to 29in.

The V3X is offered in two axle to axle lengths, 33in for maximum stability and string angle comfort at full draw for longer draw lengths. The 29in is tailored towards ultimate agility in tight spaces; the V3X gives hunters a compact rig without compromising Mathews industry leading accuracy.

The V3X 29 sports a 6in brace height and delivers speeds up to 340fps. The geometry of the V3 platform opened up a new threshold of capabilities, allowing Mathews to increase the overall riser length while keeping an ultra compact frame with unmatched stability.

Being paired with the 740 harmonic damper for ultimate stealth and Centerguard technology for perfect timing, the V3X gives hard core bow hunters more function than ever before. Now with the introduction of the V3X, we get to see the most advanced hunting platform Mathews has created.

Centerguard Cable Containment system places the roller guard in the true centre of the bow, resulting in optimal cam timing and a balanced draw cycle to maximise tunability while also adding additional vane clearance.

Extended Bridged Riser - stability is the key to accuracy, taking a strategic approach to the riser design led to a platform that cut weight while maximising length and rigidity in critical areas. The V3X sports the longest riser to axle-to-axle ratio Mathews has ever built.

Limbs and Limb Cups - deflected limbs and past parallel geometry, paired with a redesigned limb cup, cuts weight while increasing performance and efficiency.

Nano 740 Stealth remains a top priority on the V3X. The riser platform and limb geometry also increased cam efficencies and enhanced the effects of 3D damping for less noise and vibration than ever before. The V3X deploys the Nano 740, which is calibrated and tuned to the specific harmonics of this model. The extended position also provides added balance at full draw.

Since its inception, SwitchWeight Technology has been extremely convenient and allows shooters not only the ability to change draw length but also peak draw weight in 5 pound increments via the cam's module, instead of changing limbs. Available in 60, 65, 70 and 75 pound peak weights. Each set of modules are programmed for an incredibly smooth draw and maximum efficiency. For further customisation, modules are available in 85% let-off. Also comes in 80% let-off which is not a stocked item but can be special ordered. Please enquire.

Silent Connect System is compatible with the V3X. This optional kit enables hunters to attach Mathews genuine bow rope and bow sling in the field quickly and silently.

Specs at a glance

  • IBO Speed up to 340 fps
  • Weight ranges 60lbs, 65lbs, 70lbs, 75 lbs. Please specify weight required. All bows are adjustable 10lbs down from the peak draw weight
  • Draw length range 26in – 30in Please specify draw length
  • Brace height 6in
  • Axle to Axle 29in
  • Mass weight 4.47lbs
  • Let-Off 85% standard. Also comes in 80% let-off which is not a stocked item but can be special ordered. Please enquire. Switchweight modules for the ultimate ease in changing the bow's peak weight
  • Mathews genuine bowstrings and cables
  • Extended bridge riser
  • Centerguard Cable Containment system
  • 3D Damping Technology
  • Available in Right Hand and Left Hand. Please specify RH or LH
  • Available in RealTree Edge, Green Ambush, Black, Granite, Sitka Optifade SubAlpine and Sitka Optifade Elevated II. Please specify colour choice. Also comes in Under Armour Forest All-Season and First Lite Specter, which are not stocked items but can be special ordered. Please enquire
  • Made in USA
Bow Cams: Crosscentric
Speed: 340 feet per sec.
Axle to Axle: 29 inches
Brace Height: 6 inches

Model Status: Superseded

The Mathews V3X 29 is no longer available. It has been replaced by the
