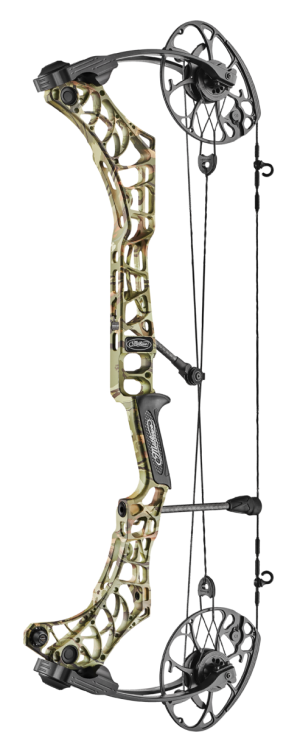

Mathews Image

Brand: Mathews

Are you after a top end flagship hunting bow from Mathews but need a lighter weight? Then the Image is for you. Feature packed but geared up for the Bowhunter specifically seeking a lower peak weight

Mathews Image

          $1,909.05 excl. GST**
** Your price if you do not reside in Australia

Mathews Image Description

Finally a bow that meets your needs and doesn't skimp on anything. Everything you need with no compromises.

The Image from Mathews is a compact hunting rig, not only suited to manoeuvrability in the bush, but also a good match for shorter draw length archers. The larger sized cams on this bow give it the feel of a much longer axle to axle bow at full draw.

Last year's model, the V3X, saw the introduction of Bridge-Lock technology that allows integrated mounting of specially designed sights to prevent unwanted movement and make accessories on the bow more in line. This year the innovative Bridge-Lock stabiliser system allows Bridge-Lock specific stabilisers to be adjusted in length of ½" increments to not only achieve perfect stabilisation, but also create a more rigid connection.

Once again Switchweight modules are featured which easily allow changes in peak weight from 43# to 50#. Gone are the days of needing to order your hunting bow with a specific poundage set of limbs, or even not being able to order a hunting bow that you can draw. Not only is this great for individual bow customisation, it is very convenient for resale in the future. Let off is standard at 85% but 80% let off modules can be specially ordered.

This year the grip can be removed and the riser is finished underneath, for a slim feel. For that special touch and sharp look, as an option, Mathews also has side plates available.

Also compatible with the Mathews Image is the Stay Afield System (S.A.S.) that allows work to be carried out on your bow on the hunt or in the field. New peep needed, replacement string to be fitted, this all can be done with the assistance of the S.A.S. which can be stored in the smallest of spaces.

Specs at a glance

  • IBO Speed up to 335 fps
  • Weight ranges 40lbs, 43lbs, 47lbs and 50lbs. Please specify weight required. All bows are adjustable 10lbs down from the peak draw weight
  • Draw length range 25.5"-30". Please specify draw length
  • Brace Height 6"
  • Axle to Axle 29"
  • Mass weight 4.27lbs
  • Let-Off 85% standard. Also comes in 80% let-off which is not a stocked item but can be special ordered. Please enquire. Switchweight modules for the ultimate ease in changing the bow's peak weight
  • Mathews genuine bowstrings and cables
  • Extended bridge riser
  • Centerguard Cable Containment system
  • 3D Damping Technology
  • Available in Right Hand and Left Hand. Please specify RH or LH
  • Riser colours available in Green Ambush, Granite and Black. Please specify colour choice. Also comes in RealTree Edge, Sitka Optifade SubAlpine, Sitka Optifade Elevated II, Under Armour Forest All-Season and First Lite Specter which are not stocked colours but can be special ordered. Please enquire
  • Limb finishes only available in Granite, Green Ambush and Black. Please specify colour choice
  • Made in USA
  • Mathews Image, the low poundage machine with all of the higher poundage features. Check it out today.

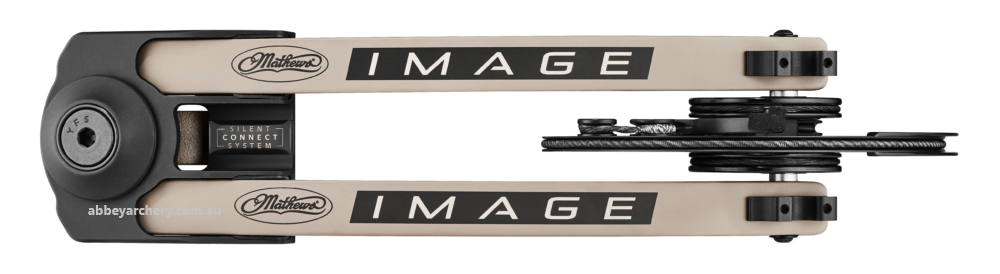

    Mathews Image 2023 Limbs

    Select your Mathews Image options:

    Draw Weight:
    Draw Length:
    Riser Colour:
    Quantity in Cart: None
    Quantity to add:
    Bow Cams: Crosscentric with Switchweight
    Limbs: Past Parallel
    Speed: 335 feet per sec.
    Axle to Axle: 29 inches
    Brace Height: 6 inches
