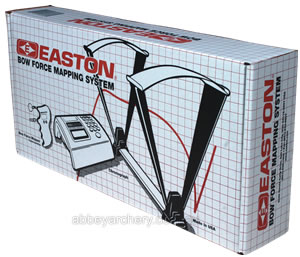

Easton Bow Force Mapping system, the ultimate in bow tuning equipment, provides a whole new realm of bow tuning performance, includes bow force mapper, arrow chronograph and shaft selector, digital bow scales, advanced arrow scales, pin gapper software and instructional DVD.
Bow Force Mapper
Proper arrow flight is critical for accuracy and repeatability of shots.
The Bow Force Mapper integrates with the Arrow Chronograph and Shaft Selector for unbelievable arrow selection accuracy. This device allows the Easton pro shop to quickly and easily determine the actual force-curve of a customer's individual bow.
- Measures and instantly displays the peak and holding weights
- Significantly more accurate than spring scales
- Great for use at competition to verify maximum bow weight and let-off percentage.
- Downloads peak weight, let off and complete force curve to the Easton Arrow Chronograph for advanced arrow selection and tuning features.
- Innovative power stroke measuring.
Arrow Chronograph and Shaft Selector/Processing Unit/Printer
The first chronograph designed from the ground up for use specifically with arrows.
- Measures arrow speeds for improved accuracy.
- Uses new and innovative technology for better readings and dependable use under fluorescent lights.
- Kinetic energy calculator.
- Measures and displays the details of a bow set up

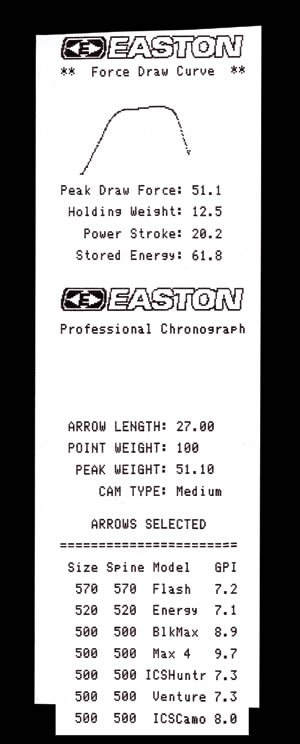

- Downloaded information from the Bow Force Mapper significantly improves arrow selection and can print:
- Specific arrow selection recommendations
- Kinetic Energy calculation for suggested arrows
- Bow draw force curve
- Cam type and let-off percent
- Bow static and dynamic efficiency
- Provides advanced arrow ballistics with accurate drag and drop statistics.
- The force draw curve is an exact measurement of cam efficiency and performance.
- Any slight adjustment in the cam system (e.g. changing draw length, an increase in string or cable length due to stretching, etc.) will visibly change the force draw curve.
- Top shooters and bow technicians can tune a bow solely on its force draw curve.
- Recording the force draw curve gives the exact read-out of a perfectly tuned bow.
- Realise new bow tuning capabilities and store force draw curves for better record keeping.
- Download force draw curve data into Microsoft Excel.
- The BFM system uses the specific force draw curve of your bow to get an exact spine size. This gives archers a new level of accurately selecting the perfect spine size for their set up.
- Exact spine size means increased accuracy.
- Complete trajectory and ballistics information allows archers to track arrow velocity at different yardages (after using the chronograph).
- Determine down-range kinetic energy for different arrows to maximize your hunting bow's knockdown power.
Digital Bow Scales
- Measures both the peak weight and holding weight of compound and recurve bows up to 100 lbs.
- Provides a more precise and reliable measurement and read-out than spring type, pull down scales and other hand held models.
- Packs away easily, the perfect tool for field shoots and tournaments.
- Certifies maximum draw weight for competition compliance.
- Displays large LCD read-out
- Comes in convenient clamshell package.

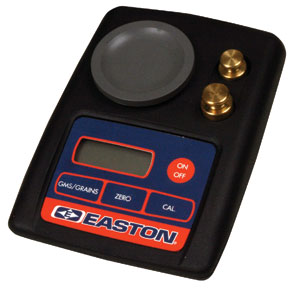

Advanced Digital Arrow Scales
The Easton Arrow Scales are precision made in America and specifically designed for the accuracy demanded by today's archers. These scales complete the BFM system beautifully by giving you the precise weight of your arrows, a vital piece of information.
- Large LCD display read out
- 9 volt battery operation
- 2 standard check weights included
- Unique arrow tray design for more accurate measuring
Pin Gapper Software
- Determines pin gap distance for any bow set-up.
- Allows for quick and easy sighting in of all pins, even with 20-yard-max indoor ranges.
- Simply hold print out trajectory tape up to sight pins and set according to the marks. After pins are set, move gang adjust until the 20 yard pin is in at 20 yards. The rest of the pins will be sighted in at the desired distances out to a maximum distance of 100 yards.
- Sights in customer's bows quick and easy. Great value-added feature for dealers looking to build loyal customers.
Bow Force Mapper Instructional DVD
The guide to expert bow analysis and arrow selection is a step by step instructional DVD for Easton's Bow Force Mapping System. Follow along with Easton Bowhunting TV host, Fred Eichler, as he shows the capabilities of the BFM and how quick and easy it is to manoeuvre through the different BFM options and functions.
Five Reasons to buy a Bow Force Mapper System
- Fast, precise tuning.
- Personalised, bow-specific arrow selection.
- Quick, easy pin setting.
- Best archery chronograph money can buy.
- Get perfect equipment set up to shoot your best.
